Electrostatic discharge is a common natural phenomenon (when a charged object approaches or contacts a conductor, the charge will be transferred, which is electrostatic discharge). Electrostatic discharge has a pervasive impact on Electrical and electronic equipment, devices or systems, and is a kind of electromagnetic energy with a very high degree of harm. Only by improving the anti-static ability of electronic products can we ensure the safe use of electronics. The electrostatic discharge generator independently developed by our company is used to evaluate the performance of electrical and electronic equipment, devices or systems subjected to electrostatic discharge. The product meets the requirements of new standards such as IEC61000-4-2 and gb/t17626.2.
Product model
output voltage
Output voltage polarity
Energy storage capacitance
Discharge resistance
Rise time of discharge current
Air discharge holding time
Discharge mode
Trigger mode
Working mode
Discharge interval
Discharge times
Equipment working power supply
ambient temperature
ESD 20K
0.2~±20kV
Positive, negative, positive before negative, negative before positive
150pF
330Q
0.6~1ns
≥5s
Contact discharge, air discharge
Single discharge, continuous discharge
Automatic, manual and gun body control
IEC level mode, programming mode, voltage ramp up mode
0.05~9.99s
1~9999
AC220V ± 10%,50/60Hz
15C~35℃

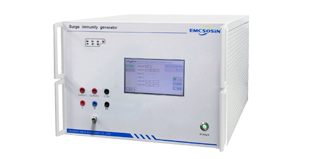

Lightning surge generator sur 1000L is an anti surge test product specially designed for semiconductor devices such as anti surge protection and communication products. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.
Lightning surge generator sur 350 is an anti surge test product specially designed for semiconductor devices and communication products such as anti surge protection. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.
Lightning surge generator sur 360 is an anti surge test product specially designed for semiconductor devices and communication products such as anti surge protection. The product meets the requirements of iec61000-4-5, gb/t17626.5, gr-1089-core and other relevant standards.
