Electrostatic discharge is a common natural phenomenon (when a charged object approaches or contacts a conductor, the charge will be transferred, which is electrostatic discharge). Its influence on Electrical and electronic equipment, devices or systems is everywhere, and it is an electromagnetic energy with a very high degree of harm. Only by improving the anti-static ability of electronic products can we ensure the safe use of electronics. In the automotive field, the requirements for electrostatic discharge are very strict. The on-board electronic electrostatic discharge generator RV ESD is specially used to evaluate the performance of on-board electronic products, devices and systems subjected to electrostatic discharge. The products meet the requirements of new standards such as ISO 10605 and gb/t19951.
Product model
output voltage
Output voltage polarity
Energy storage capacitance
Discharge resistance
Rise time of discharge current
Air discharge holding time
Discharge mode
Trigger mode
Working mode
Discharge interval
Discharge times
Equipment working power supply
ambient temperature
RVESD
0.2~±30kV
Positive, negative and positive alternating
330 PF (inside), 150pF (outside)
2000Q、330Q
0.7 ~1ns
≥5s
Contact discharge, air discharge
Single discharge, continuous discharge
Automatic, manual and gun body control
IEC level mode, programming mode, voltage ramp up mode
0.05 ~9.99s
1 ~9999
AC220V ± 10%,50/60Hz
15C~35C

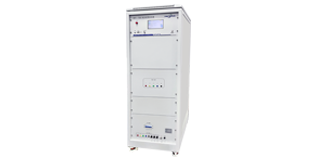

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

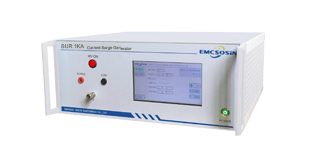

The intelligent lightning surge generator sur 1ka is used to conduct surge impact tests on surge protection devices such as arrester resistors, varistors, discharge tubes, SPD, TVs, etc. the product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with national standards and IEC standards. The product has passed the ministerial appraisal, and its main technical performance is in the leading position in China, reaching the advanced technology of similar international products.

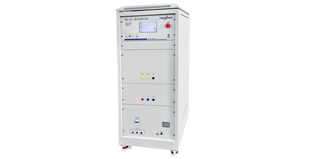

The lightning surge generator sur s10l meets two kinds of surge waveforms: 1.2/50us and 10/700us. It is a surge (shock) immunity test product designed for the power port and communication port of various electronic and electrical products, which is used to evaluate the performance of electronic, electrical, communication and other products when they are subjected to high-energy disturbance from the power port and other signal ports. The product meets the requirements of new standards such as IEC 61000-4-5 and gb/t 17626.5.
