Product features

• ? User friendly 7” color touch panel display

• ? Support multi-language & facilitate users

• ? Built-in environment self-test program

• ? Programmable operation

• ? Pre-programmed IEC standard test levels, easy to operate

• ? RS232/USB interface, PC control operation & printable test report

• ?

Product parameters

• Model


  Voltage variation range


  Voltage change duration


  Switching phase


  Built-in standard test level


  Fall/rise time


  Voltage changes in the number of repeats


  Interval cycle of voltage variation


  Voltage dips mode


  EUT capacity


  Power supply


  Ambient temperature


• VDT T10


  0~120%


  1~9999 half cycle


  0~359°synchronous, asynchronous, or automatic


  0%, 40%, 70%, 80%, 120%


  1μs~5μs for abrupt changes


  1~9999*9999


  1~9999 half cycle (HC)


  Freely set


  3-phase, 10A (custom specific on demand)


  AC220V 50/60Hz


  15℃~35℃


Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

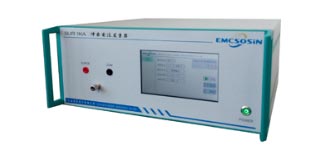

Impulse current generator sur 1ka

Model：SUR 1KA

The intelligent lightning surge generator sur 1ka is used to conduct surge impact tests on surge protection devices such as arrester resistors, varistors, discharge tubes, SPD, TVs, etc. the product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with national standards and IEC standards. The product has passed the ministerial appraisal, and its main technical performance is in the leading position in China, reaching the advanced technology of similar international products.

Learn more

Impulse current generator sur 6ka

Model：SUR 6KA

The lightning surge generator sur 6ka is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more
